Product Details:
|
| Model Name: | LC To SC Hybrid Attenuator | Mode Type: | Simplex, Duplex |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing Material: | Metal, Plastic |
| Connector: | FC Variable Hybrid | Fiber Counts: | Simplex |
| Color: | Red | Durability: | >1000 Mating Times |
| Operating Temperature: | -40~75℃ | Adapter Mounting Type: | Square Flange |
| Highlight: | LC to SC Simplex Fiber Optic Coupler,LC To SC Coupler Single Mode,LC to SC Hybrid Fiber Attenuator |
||

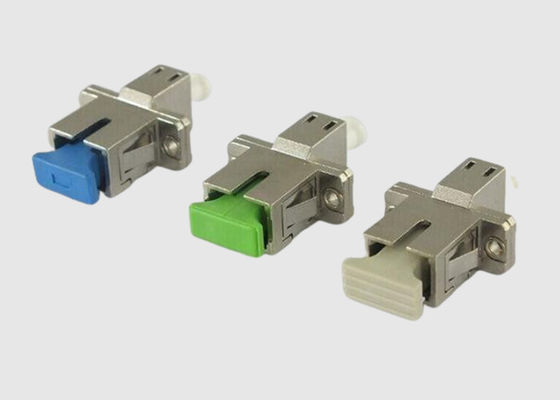

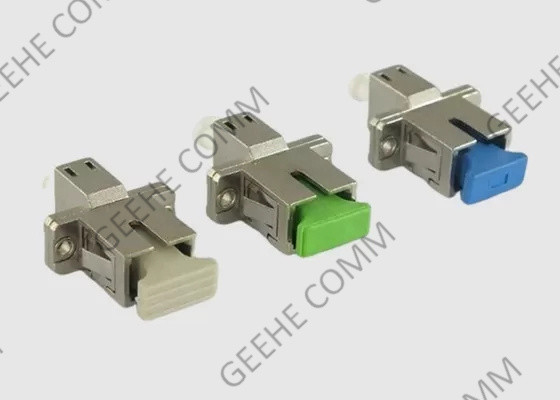

LC to SC Simplex Fiber Optic Coupler Hybrid UPC Single Mode Adapter
1. Product Overview:
LC to SC Hybrid Female to Female Fiber Adapter, Simplex, Singlemode, Zirconia Sleeve, Flange - Metal / Blue
Singlemode LC to SC Simplex Coupler - This item provides the link between Fiber networking devices. This coupler allows for connecting of similar connector types for long-distance networks at high speeds. Singlemode fiber optical products are used for long-distance signal transmission.
Geehe Manufacturing provides a wide selection of fiber adapters at competitive prices. These adapters allow you to connect various types of
optic fibers together.
2. Fiber Hybrid Adapters Feature and Benefits:
3. Fiber Optic Adapter Applications:
4. Optic Adapter Specification & Technology Parameters:
| Item | Value | Unit | ||
| Sleeve Material | Ceramic | / | ||
| Insertion Loss | Male | Typ. | ≤ 0.5 | dB |
| Min. | ≤ 0.2 | dB | ||
| Female | Typ. | ≤ 0.3 | dB | |
| Min. | ≤ 0.2 | dB | ||
| Return Loss | UPC | ≥50 | dB | |
| APC | ≥60 | dB | ||
| PC | ≥35 | dB | ||
| Insertion Loss Max. | 0.2 | dB | ||
| ∆ IL | Uniformity | ＜0.2 | dB | |
| Durability (1000 times) | ＜0.3 | dB | ||
| Proof Test | 40N,10 minute | N | ||
| Insertion And Withdrawal Force | ≤19.6N | N | ||
| Operating Temperature | -25~+70 | ℃ | ||
| Storage Temperature | -25~+70 | ℃ | ||
| Protocol Standards | IEC60874-10/61300/TIA/EIA568 | |||
5. Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SC FC ST LC MU |
APC UPC PC |
Z: Zirconia ceramic P: Phosphor Bronze | W: With Flange N: No Flange |
W: With shutter N: No shutter |
|
| Fiber Mode | Connector Type | Connector Type | Sleeve | Flange Type | Shutter Type |
6.More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) ISO9001:2015 Certification by SGS
All products have passed ISO9001:2015 System and reached Telcordia GR-326-Core
5) Young Team
The sales and service team are young people with high effect and energy, for every customer with One to One service.
