Product Details:
|
| Model Name: | MU Connector Multimode Duplex Fiber Cable | Boots: | 0.9mm.2.0mm,3.0mm |
|---|---|---|---|
| Fiber Cores: | Simplex & Duplex | Durability(Times): | ≥600 |
| Tensile Strength(N): | ≥55 | Connector Type: | MU, UPC |
| Fiber Jacket: | LSZH PVC OFNP OFNR | Fiber Type: | SM/MM/OM3 |
| Color: | Yellow,Customized | Service: | OEM&ODM |
| Highlight: | MU Connector multimode duplex patch cord,2.0mm multimode duplex patch cord,2.0mm optical jumper cord |
||

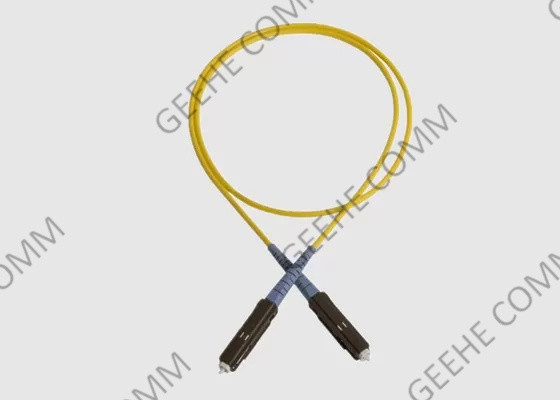

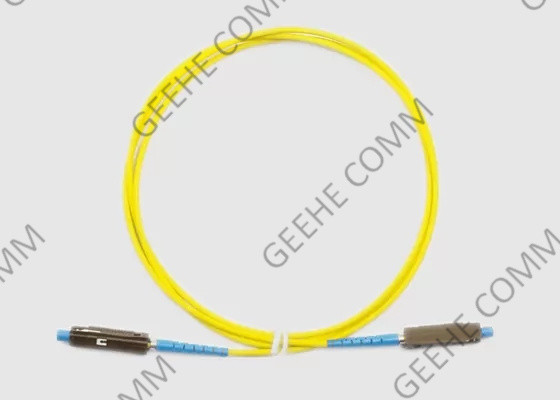

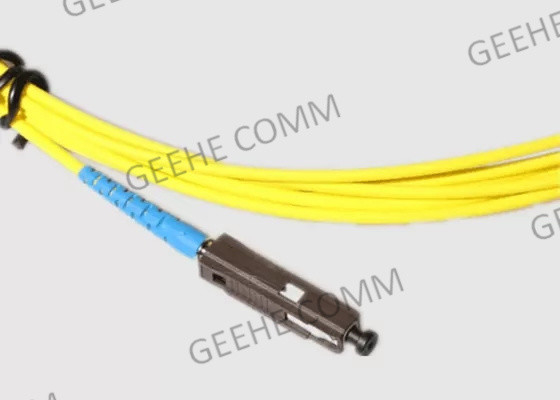

MU Connector Fiber Optic Patch Cord Single Mode And Multimode Duplex Fiber Cable
1.Basic Introduction:

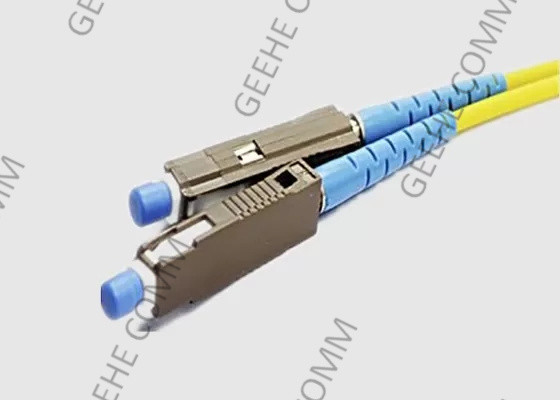

MU is a small form factor SC. It has the same push/pull style but can fit 2 channels in the same footprint as a single SC. The MU connector looks a miniature SC with a 1.25 mm ferrule. It is a popular connector type in the Japan market.
Geehe patch cords offer factory-controlled performance in a variety of connectors, ISO performance standards, and lengths, also supply 12 months after service for all products.
Free Samples are ready for all customers.
2. MU Patch Cord Benefit & Features:
3.Fiber Optic Patch Cord Applications:
4.Specification&Technology Parameter
| Parameters | Value | ||||
| Connector Type | LC/UPC,LC/UPC | ||||
| Center Wavelength(nm) | 1310 or 1550 | ||||
| Max.Insertion Loss(dB) | 0.3 | ||||
| Min.Extinction Ratio(dB) | 23 | ||||
| Min.Return Loss(UPC) (dB) | 50 | ||||
| Min.Return Loss(APC) (dB) | 60 | ||||
| Key Orientation | Slow Axis | ||||
| Axis Alignment(deg) | ±3 | ||||
| Operating Temperature(℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| FIber Type | PM Panda Fiber | ||||
* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER is 2dB lower.
* The default connector key is aligned to the slow axis.
5.MU Connector Specification& Technology Parameter:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥50 | ≥50 |
| MM | dB | ≥36(Without APC connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
6.MU Patch Cord Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
MU:MU/UPC | MU:MU/UPC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Flange Type | Fiber Length |
* EX: OFC-S-MU-MU-09-1-0.5
