Product Details:
|
| Model Name:: | Fiber Pigtailed Laser Diode | Fiber Mode: | OS2 9/125 μm |
|---|---|---|---|
| Fiber Count: | Simplex | Cable Jacket: | PVC/LSZH/OFNP |
| Cable Diameter (mm): | 0.9mm,2.0mm | Cable Length: | 1M, 2M, 3M,20M,100MOr Customized |
| Cable Color: | Yellow, Aqua, Purple, Violet Or Customized | Fiber Type: | Singlemode Or Multimode |
| Repeatability: | SM <0.2dB | Polishing Type: | PC, UPC |
| Highlight: | OFNP Fiber Optic Pigtail,9/125 Fiber Optic Pigtail,0.9mm sm lc pigtail |
||

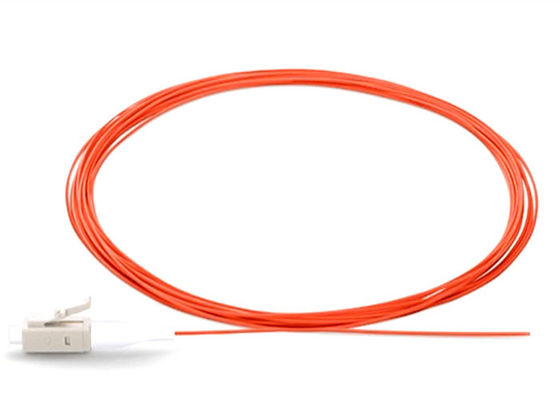

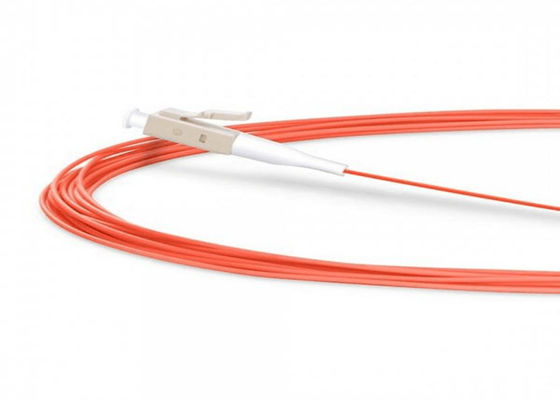

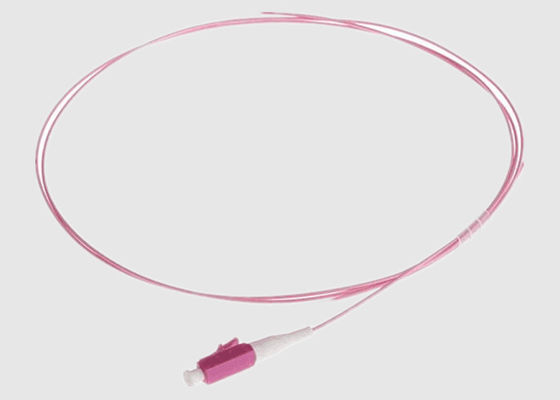

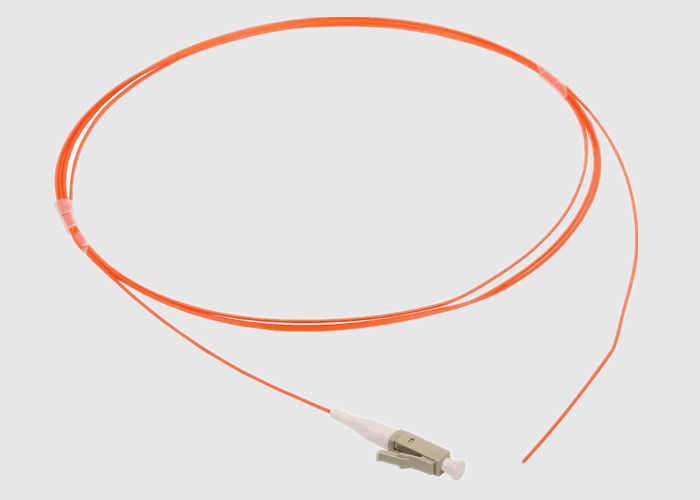

SM 9/125 LC 0.9mm OFNP Fiber Pigtailed Laser Diode With Jacketed
Basic Information:
Pigtail is a piece of fiber with connector terminated just on one end, used for terminating a fiber by fusion splicing the fiber with a pigtail or directly terminating the fiber with a fast connector to make a fiber patch cord.
LC/UPC Simplex Fiber Optic Pigtails are ultra-reliable components featuring low insertion loss and high return loss.
Features And Benefits of LC Pigtails
Applications of SC/APC Single Mode Pigtails:
Specification &Technology Parameters:
| Item | SM (Single-Mode) | MM (Multimode) | |||
| Fiber Cable Type | G625D/G655/G6571A/G657A2 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| IL(dB) | ≤0.3 | ≤0.1 | |||
| Cable Type | Simplex, Duplex, Fan-Out | ||||
| Connector Type | LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc. |
||||
| Cable OD (um) | 0.9/1.6/1.8/2.0/2.4/2.8/3.0 | ||||
| End-face Type | PC | UPC | APC | UPC | UPC |
| Retun Loss(dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Mating Times | >1000 | ||||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||
LC/UPC Single Pigtails Specification:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥45 | ≥50 | ≥60 |
| MM | dB | ≥36(Exclusive APC Connector ) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
LC Ordering Information:
| OFC | -X | -XX | -XX | -XX | -XX | -XX |
| S: Simplex D: Duplex | LA:LC/APC LC:LC/UPC LP:LC/PC | LA:LC/APC LC:LC/UPC LP:LC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
