Product Details:
|
| Model Name: | 4 X 4 LC Fiber Breakout Cable | Multi-mode Class: | OM3 |
|---|---|---|---|
| Fiber Mode: | OM3 50/125μm | Connector Type: | MTP,MPO , MTP (Elite),MPO (Elite) |
| Jacket Color: | Magenta/Beige/Aqua/Green/Yellow,Red,etc | LC Connector IL: | ≤0.2dB |
| LC Connector RL: | ≥30dB | Minimum Bend Radius: | 7.5mm |
| 10G Ethernet Distance: | 400m At 850nm | 40/100G Ethernet Distance: | 150m At 850nm |
| Highlight: | Duplex MPO Fiber Cable,16F 100g mpo cable,400G mpo breakout cable |
||

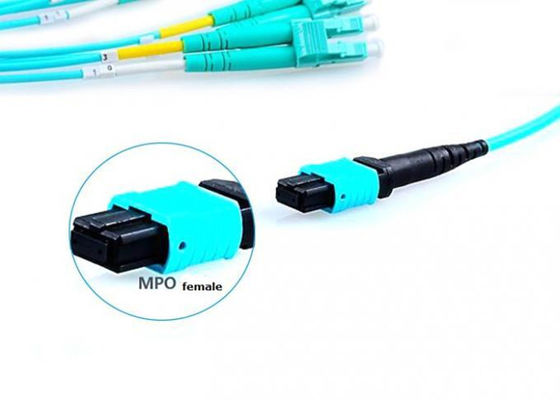

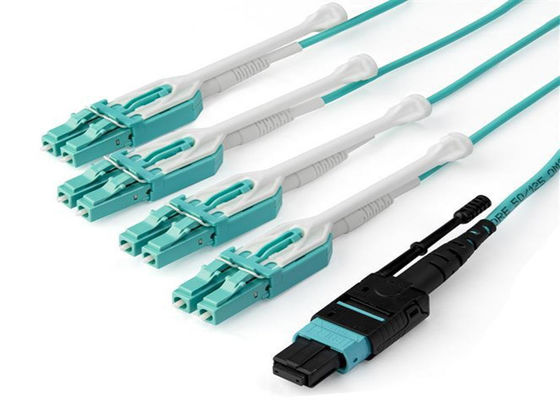

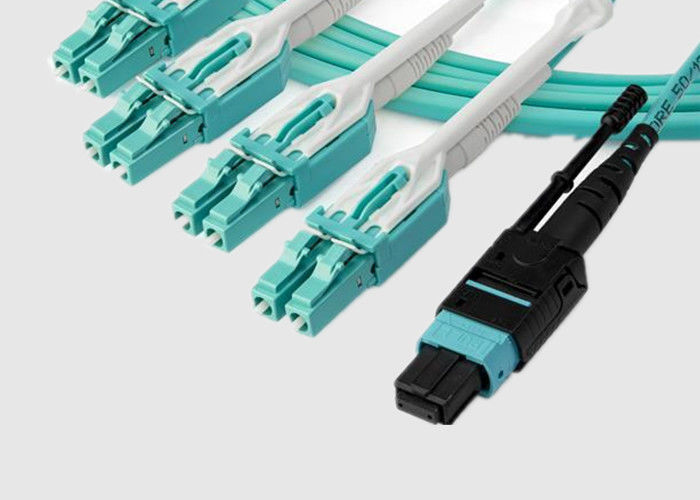

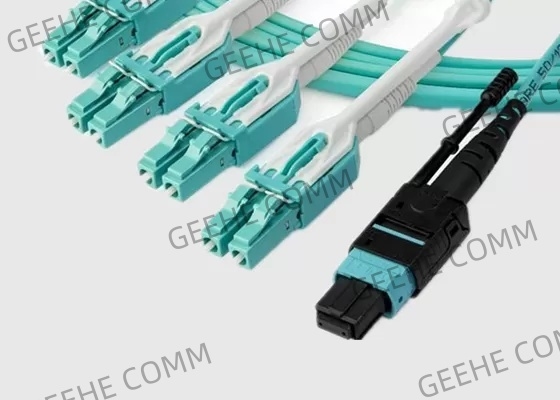

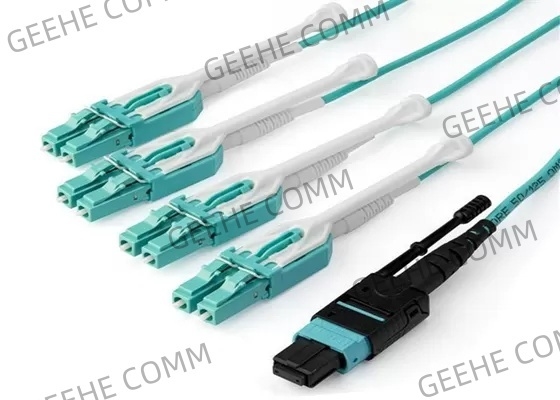

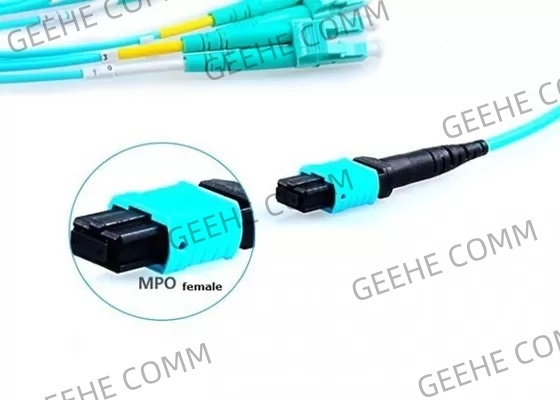

16F High Density 100G 400G Duplex MPO To 4 x 4 LC Fiber Breakout Cable
Basic Information:
This MPO breakout / fan-out fiber cable is ready for deployment in any multimode 50/125 MTP/MPO network.
The MPO HD supports a wider range of applications and high-density connectivity solutions used in data centers and other facilities, as it allows more space for connectors with improved cable management to enhance the efficiency of data network operations.
With a variety of configurations available, our team will customize each to your specific requirement, ensuring the perfect solution for your unique connectivity applications.
Features&Benefits:
Specifications and Parameter:
16F MPO Fiber Optic Performance:
| MPO Connector | Standard Sm | Low Loss Sm | Standard Mm | Low Loss Mm | |
| Insertion Loss | Typical(dB) | 0.35 | 0.2 | 0.35 | 0.2 |
| Maximum(dB) | 0.75 | 0.35 | 0.6 | 0.35 | |
| Return Loss (dB) | ≥60 for APC (8 angle polish) |
≥20 for PC | |||
| ≥50 for PC | — | ||||
| Male/Female(dB) | Male:with pins,Female:without pins | ||||
| Tensile Strength (dB) | ≤0.3 ( max 66N ) | ||||
| Vibration (dB) | ≤0.3 ( 10-55Hz ) | ||||
| Thermal Cycle (dB) | ≤0.3 (-40~75℃, 21cycles) | ||||
Geometric parameter of end-face:
| Item | Spec | ||||
| SM | MM | ||||
| RX(mm) | MIN 2000 | ||||
| RY(mm) | MIN 5 | ||||
| Fiber Height (nm) | 1000-3500 | ||||
| Max. diff. Height all (nm) | MAX: 500 | ||||
| Max. diff. Height adj (nm) | MAX: 300 | ||||
| X-Axis Angle ( °) | -0.2 ~ 0.2 | ||||
| Y-Axis Angle ( °) | PC: -0.2 ~ 0.2 APC: 7.8 ~ 8.2 |
-0.2 ~ 0.2 | |||
| Core Dip | N/A | -100 ~ 200 | |||
Ordering Information:
| MPO | -XX | -XX | -XX | -X | -XX | -X | -XX |
| A1: G657A1 A2: G657A2 M3: OM3 M4: OM4 M5: OM5 |
LZ: LSZH NP: OFNP NR: OFNR |
FF: MPO /MPO(female to female ) MF: MPO/MPO (male to a female) MM: MPO/MPO (male to male) |
L: Low loss B: Standard loss |
12:1×12 core 48:4×12 core 72:6×12 core 96:8×12 core |
A: TIA568 through-type B: TIA568 Reverse type C: TIA568 cross-type |
5M to 50M |
|
| Gender Type | Housing color | Ferrule | Connector loss standard | Fiber cores | Polarity | Fiber length |
HD Pre-terminated Jumper Cable Application:
Geehe's Standards Compliance :
