Product Details:
|
| Model Name: | In-Line Fiber Optic Attenuator | Connector Gender: | Fixed Male To Female |
|---|---|---|---|
| Mounting Style: | Inline | Attenuation Value: | 2db,3db,5db,6db,7db,10db,15db,30db Etc |
| Operating Wavelength: | 1260nm~1620nm | Color: | Green |
| Housing: | Metal, Plastic | Ferrule: | Zirconia/Ceramic, Metal |
| Connector A: | LC/APC Female Simplex | Connector B: | LC/APC Male Simplex |
| Highlight: | 15dB Fiber Optic Attenuator,DWDM Fiber Optic Attenuator,15dB fixed optical attenuator |
||

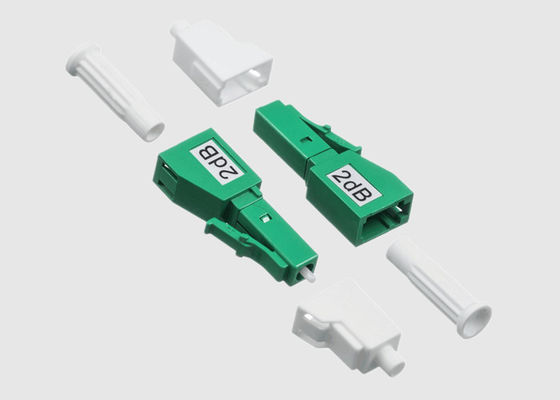

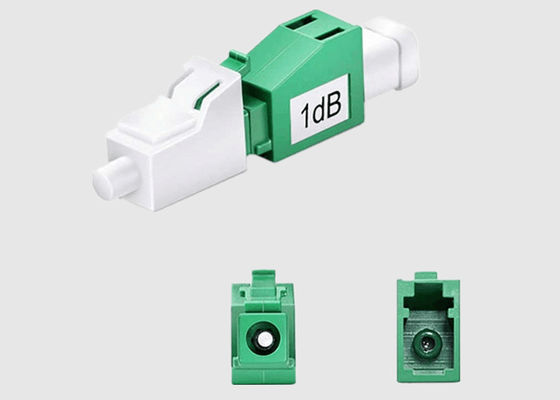

WDM And DWDM System 15dB LC/APC Female to Male Fiber Optic Attenuator Kits
Product Description:
As optical passive devices, Geehe's Optic Pad attenuators are mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.
Depending on the project or need, fixed attenuators can limit, or attenuate, the amount of light passing through to the exact level your project or application requires.
LC /APC Attenuator Features And Benefits:
Specification& Parameters:
| Parameter | Value | |||||
| Physical Characteristics | Plastic Material | UL 94V-0ABS high-impact thermoplastic | ||||
| Fiber Material | Metal-ion doped optical fiber | |||||
| Mechanical Characteristics | Operating Temperature(℃) | -40 ~ +85 | ||||
| Storage Temperature(℃) | -40 ~ +85 | |||||
| Optical Performance | Operating Bandwidth | 1250nm~1625nm | ||||
| Center Wavelength | 1310nm and 1550nm | |||||
| Attenuation Tolerance | 1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB |
|||||
| Return Loss UPC (dB) | ≥45 | |||||
| Return Loss APC(dB) | ≥55 | |||||
| PDL | ≤0.1 | |||||
| Packaging | Clear Ziploc Bag,1 Unit Per Bag | |||||
Ordering Information:
| OTA- | HF- | XX- | X- | A- | XX- | |
| HF: Hight return loss type | LC: LC SC: SC FC: FC |
1: APC 2:UPC |
03: 03DB 04: 04DB |
|||
| Attenuator Type | Connector | Interface Polish | Attenuation Value | |||
LC APC Attenuator Application:
More Optic Attenuations:
