Product Details:
|
| Model Name: | Carbon Fiber Heat Shrink Tubing | Type: | Insulation Sleeving |
|---|---|---|---|
| Material: | Outer Tuber,inner Tube,Stainless Steel Rod, Plastic,340 Stainless Steel | Steel Needle: | 1.5,1.2,1.0, 0.8, 0.5mm Or Customized |
| Length: | 30mm,35mm,40mm,45mm, 60mm Or Customized | Standard Color: | Clear |
| Operating Temperature: | -45 – 100 °C | Shrinking Temperature: | 90 - 120 °C |
| Diameter: | 1.2/1.5mm | Package: | 100pcs/bag |
| Highlight: | 20mm fiber splice protector,φ4 fiber splice protector,20mm fiber heat shrink tube |
||

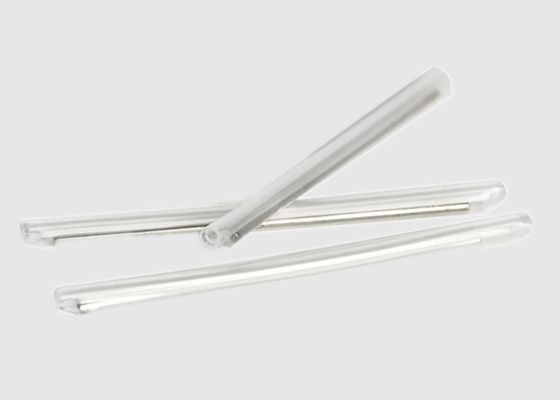

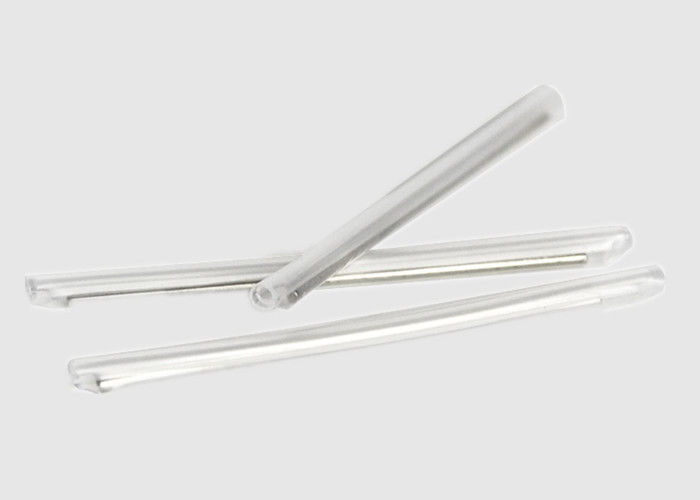

Heat Shrinkable Splice Protector 20mm φ4 Without Steel Strength Member
Brief Introduction:
Optical fiber heat shrink tubes consist of a rod of reinforcing the splice, hot fusion tubing, and cross-linked polyolefin. To rebuild the coating of fiber to provide mechanical strength at the fusion joint area and keep optical transmission properties. A specially designed cross-linked Clear Heat Shrinkable tubing, with Clear fusion tubing liner, providing protection to fiber optical splices. Available with single fiber and ribbon fiber. Customized designs are available upon request.
Fiber Splice Heat Shrink Characteristics:
Specification & Characteristics:
| Project | Test Method | Typical Data |
| The Tensile Strength | ASTM d 2671 | 18Mp |
| Tensile Rate | ASTM d 2671 | 700% |
| Density | ISO R1183D | 0.94g/cm3 |
| Compressive Strength | IEC 243 | 25KV/mm |
| Volume Resistivity | IEC 243 | 1015Ω |
| The Dielectric Constant | IEC 243 | 2.5 |
| The Longitudinal Shrinkage Rate | ASTM d 2671 | ≤5% |
| The Rate Of Partial Wall | ASTM d 2671 | 10% |
| Size | Routine | 15,25,35,40,43,45,50,60 |
| Unconventional | Micro 15mm, 8 core 24mm, 12 core 40mm | |
| Operating Temperature | (-40 -+85℃) | |
| Initial Shrinkage Temperature | 120℃ | |
Fiber Fusion Splice Heat Shrink Application:
1. Fusion splicing
2. Fiber cable protecting
3. FTTH system
4. Rack-mount & Wall-mount terminal box
5. Fiber O fiberoptic Splice Closure
6. Optical fiber switch box and so on continue protection
New Types Of Fiber Heat-shrink Tube Specification Technology:
| Item | Description | Sleeving | Outer tube (Heat-shrinkable) | ||||
| Diameter (Before shrink) | Diameter (After shrink) | Length | Inner Diameter | Outside diameter | Length | ||
| 1 | Fiber Protection Sleeves _11mm_φ1.9_Without Strength Member | 1.9±0.1 | 1.25±0.1 | 11±0.1 | 1.4±0.1 | 1.9±0.1 | 11±0.1 |
| 2 | Fiber Protection Sleeves _15mm_φ1_with Strength Member | 1.8±0.1 | 1.4±0.1 | 15±0.1 | 1.5±0.1 | 1.8±0.1 | 15±0.1 |
| 3 | Fiber Protection Sleeves _20mm_φ3_Without Strength Member | 3.9±0.1 | 2.5±0.1 | 20±0.1 | 3.4±0.1 | 3.9±0.1 | 20±0.1 |
| 4 | Fiber Protection Sleeves_20mm_φ4_Without Strength member | 4.4±0.1 | 3.0±0.1 | 20±0.1 | 4.0±0.1 | 4.4±0.1 | 20±0.1 |
