Product Details:
|
| Model Name: | Fiber Jumper Patch Cord LC SC | Connectors: | LC/SC/ST/FC/LSH/MU/MTRJ |
|---|---|---|---|
| Polishing: | APC UPC,PC | Fiber Mode: | Duplex |
| Cable Diameter: | 0.9mm,2.0mm,3.0mm | Cable Material: | PVC/LSZH/OFNR |
| Fiber Grade: | G.652.D | Jacket Color: | Aqua |
| Fiber Cable Length: | 1m,2m,3m,5m, Customized | Test Requirements: | 100% 3D Test |
| Highlight: | 50/125um Lc Lc Om3 Patch Cord,10Gb Multimode Fiber Patch Cables,Multimode Lc Lc Om3 Patch Cord |
||

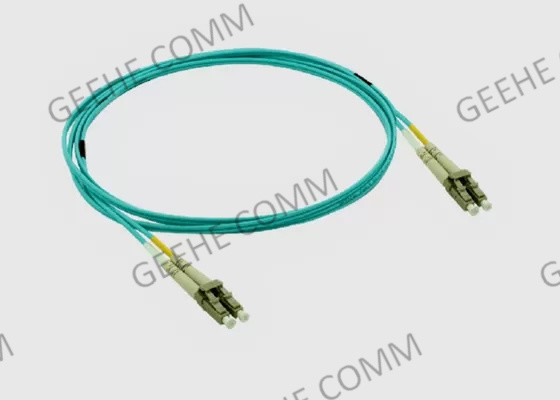

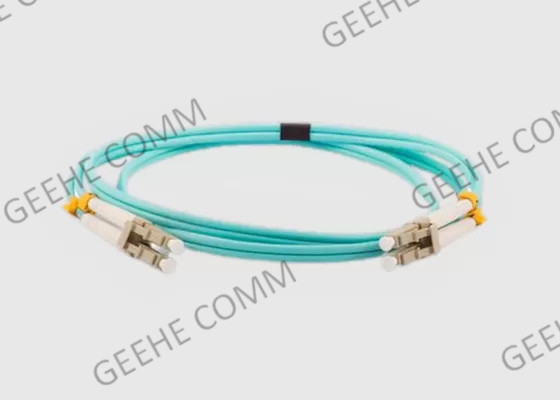

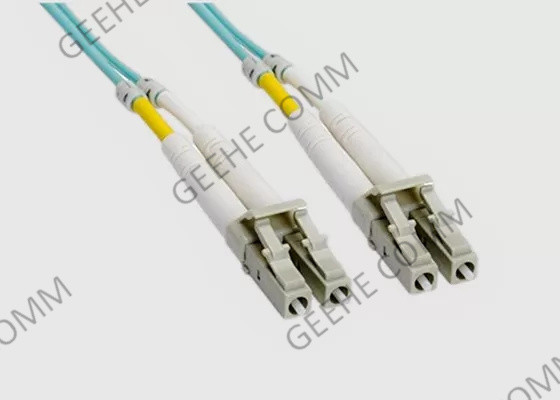

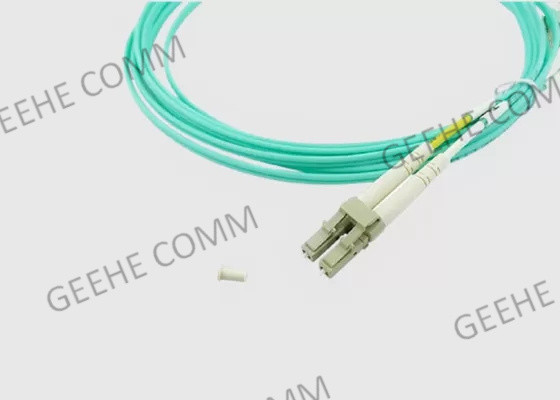

LC- LC Multimode OM3 50/125µm OFNR Rated 10Gb Fiber Patch Cables
1. Brief Introduction:
For data-intensive fiber optic applications, Geehe offers Multimode OM3 Fiber Optic Cables made with the highest quality. Using the latest in laser-ready glass, suitable for the 10 Gigabit Standards, get lightning-fast speeds using laser optimized 10 Gig fiber cable.
OM3 fiber optic cables are constructed using j-Bendable bend-insensitive fiber from J-Fiber, providing you with superior bend-loss performance in OM3 standard-compliant high-bandwidth performance for 10 Gb/s Ethernet transmission rates. With this superior fiber technology, you can be sure to expect reliable performance for your compact cable management systems in advanced data center applications.
2. Fiber Optic Patch Cord LC To LC Benefit & Features:
3. Fiber Optic Patch Cord Applications:
4. Specification&Technology Parameters
| Parameters | Value | ||||
| Connector Type | LC/UPC,LC/UPC | ||||
| Center Wavelength(nm) | 1310 or 1550 | ||||
| Max.Insertion Loss(dB) | 0.3 | ||||
| Min.Extinction Ratio(dB) | 23 | ||||
| Min.Return Loss(UPC) (dB) | 50 | ||||
| Min.Return Loss(APC) (dB) | 60 | ||||
| Key Orientation | Slow Axis | ||||
| Axis Alignment(deg) | ±3 | ||||
| Operating Temperature(℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| FIber Type | PM Panda Fiber | ||||
* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER is 2dB lower.
* The default connector key is aligned to the slow axis.
5. Fiber patch cord LC to LC Specification& Technology Parameter:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥50 | ≥50 |
| MM | dB | ≥36(Without APC connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
6. LC Connector Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
LA:LC/APC LC:LC/UPC LP:LC/PC | LA:LC/APC LC:LC:UPC LP:LC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Flange Type | Fiber Length |
* EX:OFC-D-LA-LA-09-1-1.0
7. SC Connector Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SA:LC/APC SC:LC/UPC SP:LC/PC | SA:LC/APC SC:LC:UPC SP:LC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Flange Type | Fiber Length |
8. Geehe Service:
-- Continuous improvement; accepting new challenges
-- Innovating new processes, and creating new products for the benefit of our customers
-- Free samples for testing
-- Factory inspection, also accept the third party inspect
-- Younger Team with high work efficiently
