Product Details:
|
| Model Name: | Fiber Patch Cord Multimode | Cable Diameter: | 2.0mm |
|---|---|---|---|
| Fiber Counts: | 2 Cores | Polishing: | UPC |
| Jacket Material: | PVC/LSZH/OFNR | Cable Length: | 1M,2M,3M...customize |
| Jacket Color: | Yellow | Fiber Type: | Multimode 62.5/125 |
| Polarity: | Type A To B Crossover (Most Common For Duplex Patch Cords) | ||
| Highlight: | Fiber Patch Cord SC APC to SC UPC,Yellow 100M Fiber Patch Cord,2.0mm Fiber Patch Cord Multimode |
||

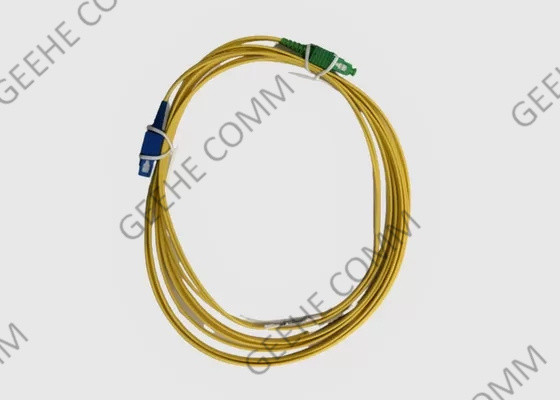

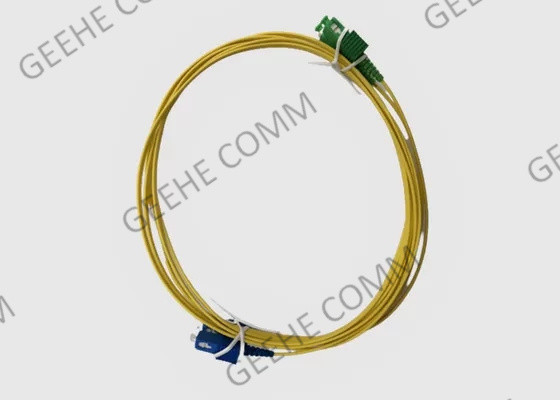

Yellow Fiber 100M SC APC to SC UPC Duplex Fiber Patch Cord Multimode
1.Fiber Patch Cord Basic Introduction:
Geehe offers an extensive line of SC/APC to SC/APC 9/125µm OS2 single-mode duplex fiber optic patch cables with many choices of different length, jacket material, and cable diameter.
The connectors utilize an APC (Angled Physical Contact) polish, which provides a higher return loss than standard UPC (Ultra Physical Contact) single-mode connectors. The APC single-mode fiber optic patch cables are commonly used in carrier equipment, telecommunications, patch field, and CATV applications. They are manufactured using high-quality material and are strictly tested for insertion and return loss to ensure superior performance and quality, which is ideal for fiber cabling infrastructure.
2.Fiber Optic Patch Cord SC To SC
3.DuplexSC To SC Patch Cord Application:
4.Specification&Technology Parameters
| Parameters | Value | ||||
| Connector Type | LC/UPC,LC/UPC | ||||
| Center Wavelength(nm) | 1310 or 1550 | ||||
| Max.Insertion Loss(dB) | 0.3 | ||||
| Min.Extinction Ratio(dB) | 23 | ||||
| Min.Return Loss(UPC) (dB) | 50 | ||||
| Min.Return Loss(APC) (dB) | 60 | ||||
| Key Orientation | Slow Axis | ||||
| Axis Alignment(deg) | ±3 | ||||
| Operating Temperature(℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| FIber Type | PM Panda Fiber | ||||
* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER is 2dB lower.
* The default connector key is aligned to the slow axis.
5. Fiber patch cord SC Specification& Technology Parameter:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥50 | ≥50 |
| MM | dB | ≥36(Without APC connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
* EX:OFC-D-LA-LA-09-1-1.0
