Product Details:
|
| Model Name: | Fixed Fiber Attenuator 1-25dB | Connector Gender: | Fixed Male To Female |
|---|---|---|---|
| Mounting Style: | Inline | Attenuation Value: | 2db,3db,5db,6db,7db,10db,15db,30db Etc |
| Operating Wavelength: | 1260nm~1620nm | Color: | Blue,Green, Beige |
| Housing: | Metal, Plastic | Ferrule: | Zirconia/Ceramic, Metal |
| Connector A: | E2000/APC Female Simplex | Connector B: | E2000/APC Male Simplex |
| Highlight: | Plug in Fixed Optical Attenuator,E2000/APC Fixed Optical Attenuator,Fixed 5db Attenuator Optical Fiber |
||

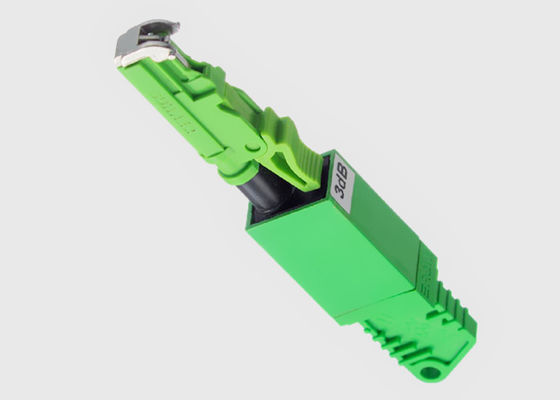

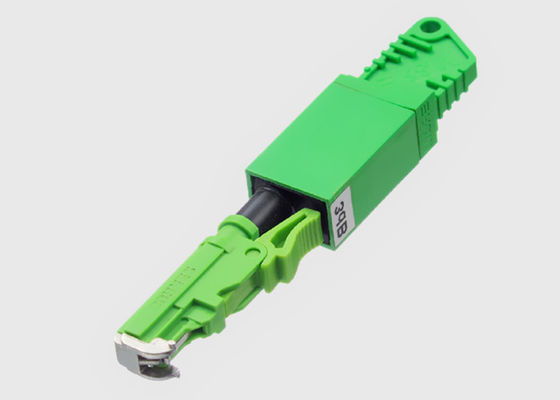

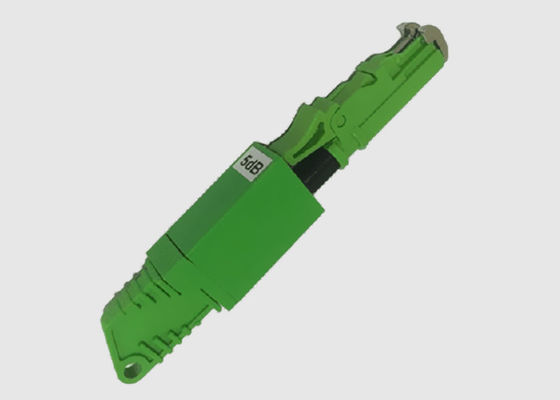

E2000/APC Male to Female Singlemode Plug-in Fixed Fiber Attenuator 1-25dB
Product Description:
E2000 fiber optic attenuator includes e2000 single mode female to female fiber optic attenuator from 1dB to 30dB.E2000 fiber optic attenuator is a passive device used to reduce the amplitude of a light signal without significantly changing the waveform itself. This is often a requirement in Dense Wave Division Multiplexing(DWDM) and Erbium-Doped Fiber Amplifier(EDFA)applications where the receiver can’t accept the signal generated from a high-power light source.
This E2000/APC fiber optic attenuator contains doped fiber and suitable for both 1310nm and 1550nm operation. Fixed attenuation values are available in 1dB increments from 1 to 25dB. We have a mature attenuator production process, and can fully meet customer needs. Each E2000/APC optic attenuator is shipped with a test report that makes it easy for customers to check the optical performance quickly.
E2000 APC Attenuator Features And Benefits:
Specification& Parameters:
| Parameter | Value | |||||
| Physical Characteristics | Plastic Material | UL 94V-0ABS high-impact thermoplastic | ||||
| Fiber Material | Metal-ion doped optical fiber | |||||
| Mechanical Characteristics | Operating Temperature(℃) | -40 ~ +85 | ||||
| Storage Temperature(℃) | -40 ~ +85 | |||||
| Optical Performance | Operating Bandwidth | 1250nm~1625nm | ||||
| Center Wavelength | 1310nm and 1550nm | |||||
| Attenuation Tolerance | 1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB |
|||||
| Return Loss UPC (dB) | ≥45 | |||||
| Return Loss APC(dB) | ≥55 | |||||
| PDL | ≤0.1 | |||||
| Packaging | Clear Ziploc Bag,1 Unit Per Bag | |||||
Ordering Information:
| OTA- | HF- | XX- | X- | A- | XX- | |
| HF: Hight return loss type | LC: LC SC: SC FC: FC |
1: APC 2:UPC |
03: 03DB 04: 04DB |
|||
| Attenuator Type | Connector | Interface Polish | Attenuation Value | |||
E2000 Apc Attenuator Application:
