Product Details:
|
| Model Name: | 1 ×2 Fiber Optic SC Coupler | Optical Coupler Configuration Type: 1x2 Operating Wavelength: | 1310nm,1490nm,1550 Nm |
|---|---|---|---|
| Split Ratio: | 50/50,40/60,30/70,20/80,10/90,5/95 Etc | Other Types: | Singlewindow, Dualwindow,Triplewindow |
| Function: | Fiber Distribution | Available Pre-terminated: | LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, And ST/UPC |
| Polarization Alignment: | Slow Axis Or Fast Axis | Fiber Type: | PM Fiber Cable |
| Package Type: | Steel Tube | Configuration Type: | 1×2 |
| High Light: | 1×2 SC Fiber Coupler,Dual Window SC Fiber Coupler,1×2 Fiber Optic Couplers And Splitters |
||

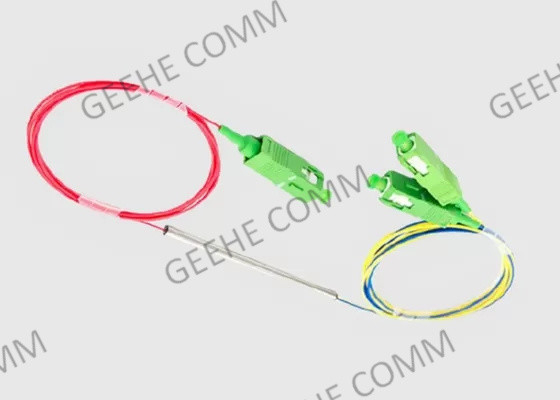

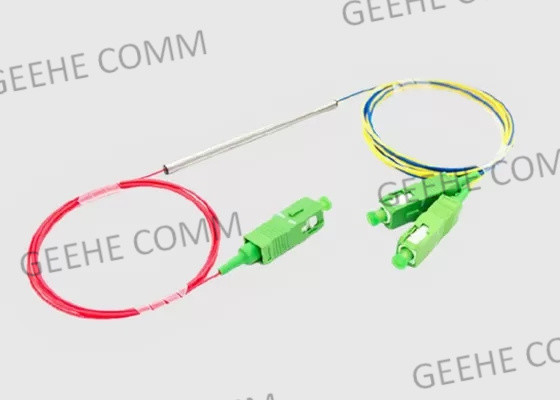

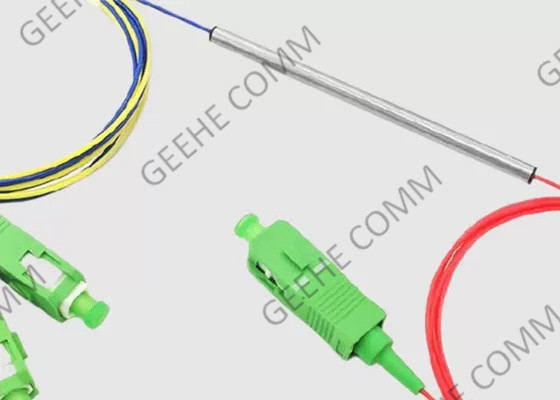

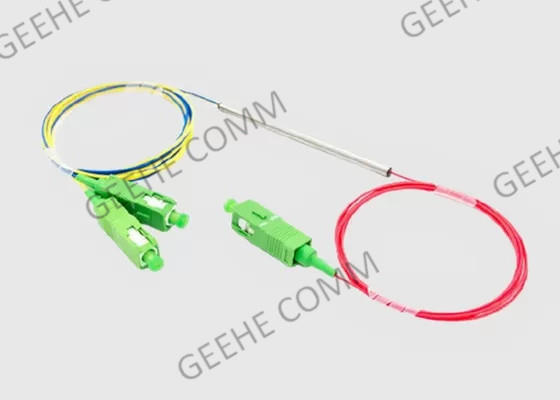

50/50 Dual Window 1 ×2 Fiber Optic SC Coupler/Splitter 1310/1550nm
Optic Coupler Brief Introduces:
DWC (Dual Window Couplers) are Single Mode Splitters with a defined split ratio from one input fiber to 2 output fibers. This DWC is a 1x2, with 1 input and 2 output fibers with a 90:10 split ratio and 250µm bare fiber. Dual Window Couplers are available with 900µm loose tube single mode fiber or 250µm bare fiber and terminated or unterminated as per your needs. Unconnectorized Dual Window Couplers come with no connectors for easy splicing or connectorization. Connectorized Dual Window Couplers are available with your choice of Fiber Optic Connectors: LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.
1× 2 Fiber Optic Coupler Features& Benefits:
1)Low Excess Loss
2) Low Insertion Loss Over
3) Both Bandpasses
4) Excellent Uniformity
5) Low Polarization Dependent Loss
6) High Directivity
7) Applications
8) Two Color OTDR
9) Full Duplex Transmission
10) Multi-Color Sensors
11) Trunk/Loop Branching
Certification and Compliance:
1) GR -1209 - CORE Requirements for Passive Optical Components
2) GR - 1221 - CORE Reliability Assurance Requirements for Passive Optical Components
3) GR - 326 - CORE Requirements for Single Mode Optical Connectors and Jumpers Assemblies
4) TIA-604 Fiber Optic Connector internateability standard
5) RoHS Directive on Restriction of Hazardous Substances.
Dual Window Wide Brand Coupler Specification and parameter:
| Parameter | P | A | |||
| Operating Wavelength(nm) | 1310&1550 | ||||
| Operating Bandwidth(nm) | 1310 ± 40nm,1550 ± 40nm | ||||
| Fiber Type(dB) | Corning G652D OR Corning G657 A1 | ||||
| Insertion Loss (dB) |
50/50 | ≤3.3 | ≤3.5 | ||
| 40/60 | 3.70~4.40≤2.5 | 3.50~4.60/≤2.8 | |||
| 30/70 | 5.00~5.60/≤1.8 | 4.90~6.10/≤2.1 | |||
| 20/80 | 6.80~7.40/≤1.2 | 6.50~7.70/≤1.2 | |||
| 10/90 | 9.60~10.50/≤0.6 | 8.80~11.40/≤0.8 | |||
| 5/95 | 12.70~13.50 /≤0.4 | 12.05~14.05/≤0.5 | |||
| 3/97 | 14.60~15.50/≤0.3 | 13.60~16.05/≤0.4 | |||
| 2/98 | 16.60~17.90/≤0.25 | 15.60~18.20/≤0.3 | |||
| 1/99 | 19.20~20.80/≤0.2 | 18.80~21.40/≤0.25 | |||
| PDL(dB) | ≤0.1 | ≤0.15 | |||
| Return Loss(dB) | ≥50 | ≥45 | |||
| Directivity(dB) | ≥55 | ||||
| Operating Temperature(℃) | -40 ~ +85 | ||||
* The above specification is without connector
* Other specifications can be made on customer request
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X |
| P: Premium A: Grade A X: Customization |
12:1x2 22:2x2 |
35:1310/1550nm | 01: 01:99 02: 02:98 …… 50: 50:50 |
1:1 m x: Customization |
25:250μM Fiber 09:900μM loose fiber | SC: SC/UPC SA: SC/APC 00: no connector |
A: A B: B C:C |
|
| Grade | Port number | Operating wavelength | Coupling ratio | Fiber length | Fiber type | Connect type | Dimension |
EX:WBC-P-12-35-50-1-09-0-B
2×2 FIber Optic Coupler Application:
FTTx Systems
LAN, WAN and Metro Networks
Analog/Digital Passive Optical Networks
Long-haul telecommunication
Mini sizes transmitter/receiver module
Optical communication system
Optical communication system
Optical power distribution system
Fiber optic sensors
Optical test system
