Product Details:
|
| Model Name: | Fiber Optic Coupler 1310nm | Operating Wavelength Range: | 1310nm,1490nm,1550 Nm |
|---|---|---|---|
| Split Ratio: | 50/50,40/60,30/70,20/80,10/90,5/95 Etc | Other Types: | Singlewindow, Dualwindow,Triplewindow, WDM |
| Device Type: | Fused Coupler | Available Pre-terminated: | LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, And ST/UPC |
| Polarization Alignment: | Slow Axis Or Fast Axis | Fiber Type: | PM Fiber Cable |
| Package Dimension: | Ø4x 40;Ø4x 54;98x16x9 Mm | Configuration Type: | 2×2 Split |
| High Light: | 2x2 Fiber Optic Coupler,Fiber Optic Coupler 1310nm,Multimode Optical Cable Coupler |
||

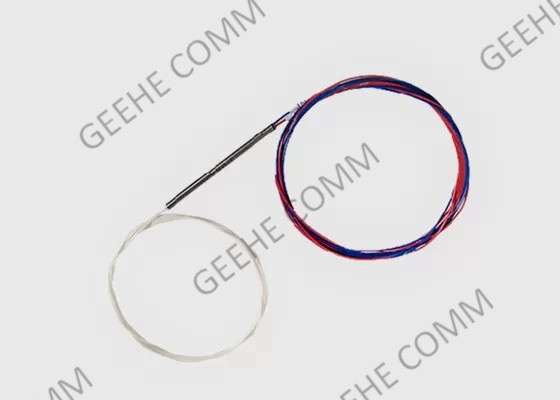

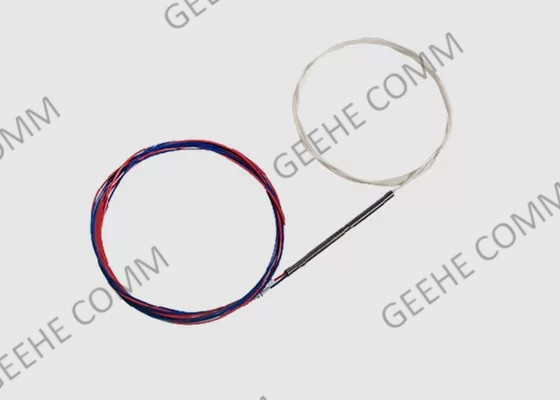

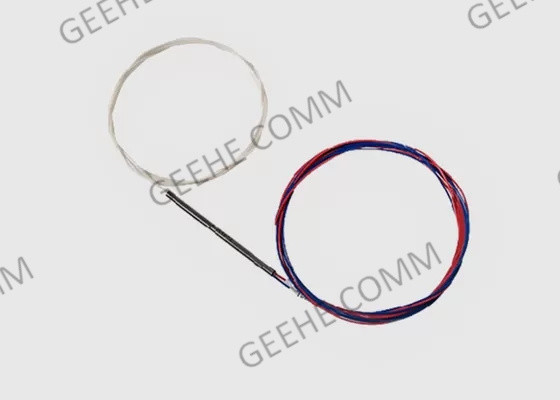

Customized 2x2 Multimode Single Mode Fiber Optic Coupler 1310nm
Optic Coupler Brief Introduces:
Single-mode wideband couplers have 80nm bandwidth, compared to 40nm of standard single-mode couplers. This product has very low excess loss and high-temperature stability.
Coupling ratio can be specified. Couplers working at center wavelength other than 1550nm or 1310nm can also be provided.
1x2 90:10 Split ratio
250μm bare fiber for easy stripping, splicing or terminating.
Also available pre-terminated with LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC50/50, 40/60, 30/70, 20/80, 10/90, 5/95, 1/99, 60/40, 70/30, 80/20, 90/10, 95/5, and 99/1.
Available split ratios: 50/50, 40/60, 30/70, 20/80, 10/90, 5/95, 1/99, 60/40, 70/30, 80/20, 90/10, 95/5, and 99/1. In 1x2 or 2x2 splits.
FIber Optic Coupler Features& Benefits:
1) Low Excess Loss
2) Low Insertion Loss Over
3) Both Bandpasses
4) Excellent Uniformity
5) Low Polarization Dependent Loss
6) High Directivity 7) Various coupling ration
Certification And Compliance
1) GR -1209 - CORE Requirements for Passive Optical Components
2) GR - 1221 - CORE Reliability Assurance Requirements for Passive Optical Components
3) GR - 326 - CORE Requirements for Single Mode Optical Connectors and Jumpers Assemblies
4) TIA-604 - Fiber Optic Connector internateability standard
5) RoHS - Directive on Restriction of Hazardous Substances 6) ISO9001:2015 Quality System
FBT Coupler Specification and parameter:
| Parameter | P | A | |||
| Operating Wavelength(nm) | 1310&1490&1550 | ||||
| Operating bandwidth(nm) | 1310 ± 40nm,1490± 40nm,1550 ± 40nm | ||||
| Fiber Type(dB) | Corning G652D OR Corning G657 A1 | ||||
| Insertion Loss (dB) |
50:50 | ≤3.4 | ≤3.6 | ||
| 30:70 | 5.00~5.60/≤1.8 | 4.90~6.10/≤2.1 | |||
| 10:90 | 9.60~10.50/≤0.6 | 8.80~11.40/≤0.8 | |||
| 5:95 | 12.70~13.50 /≤0.4 | 12.05~14.05/≤0.5 | |||
| 1:99 | 19.20~20.80/≤0.2 | 18.80~21.40/≤0.25 | |||
| PDL(dB) | ≤0.1 | ≤0.1 | |||
| Return Loss(dB) | ≥50 | ≥45 | |||
| Directivity(dB) | ≥55 | ||||
| Operating Temperature(℃) | -40 ~ +85 | ||||
Ordering Information:
| WBC- | X- | X2- | 345- | XX- | X- | XX- | XX- | X |
| P: Premium A: Grade A X: on request |
12:1x2 22:2x2 |
1310&1490&1550nm | 01: 01:99 05: 05:95 …… 50: 50:50 |
1:1 m x: on request |
25:250μM Fiber 09:900μM Loose Fiber | SC: SC/UPC SA: SC/APC 00:no connector |
A: A B: B C: C |
|
| Grade | Port Number | Operation Wavelength | Coupling Ratio | Fiber Length | Fiber Type | Connector Type | Dimension |
FBT Coupler Compare With PLC Splitter:
| Parameters | FBT Splitter | PLC Splitter |
| Fabrication Method | Two or more pieces of optical fibers are bound together and put on a fused-taper fiber device. The fibers are then drawn out according to the output branch and ratio with one fiber being singled out as the input. | Consists of one optical chip and several optical arrays depending on the output ratio. The optical arrays are coupled on both ends of the chip. |
| Operating Wavelength | 1310nm and 1550nm (standard); 850nm (custom) | 1260nm -1650nm (full wavelength) |
| Application | HFC (network of fiber and coaxial cable for CATV); All FTIH applications. | Same |
| Performance | Up to 1:20– reliable. For larger splits, reliability can become an issue. | Good for all splits. High level of reliability and stability. |
| Input/Output | One or two inputs with an output maximum of 32 fibers. | One or two inputs with an output maximum of 64 fibers. |
| Package | Steel Tube (used mainly in equipment); ABS Black Module (Conventional) | Same |
| Input/Output Cable | Bare optical fiber; 0.9mm, 2.0mm, and 3.0mm | Same |
| Package Size | 1×2 to 1×8 smaller size than PLC | More than 1×8, PLC Splitter size is smaller |
| Stability and Reliability | Stability is better | High stability not as FBT Splitter |
FIber Optic Coupler Application:
Wuhan Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Fast Delivery
With skilled and stable workers, all the order turnover is fast than the competitors
5) Factory Audit
We cooperate with famous brands and Japanese customers, with 15 years of factory inspection experience and be familiar with the whole inspect process by SGS
