Product Details:
|
| Model Name: | 1×4 FBT Fiber Optic FC Coupler | Optical Coupler Configuration Type: 1x2 Operating Wavelength: | 1310nm,1490nm,1550 Nm |
|---|---|---|---|
| Split Ratio: | 50/50,40/60,30/70,20/80,10/90,5/95 Etc | Other Types: | Singlewindow, Dualwindow,Triplewindow |
| Function: | Fiber Distribution | Available Pre-terminated: | LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, And ST/UPC |
| Polarization Alignment: | Slow Axis Or Fast Axis | Fiber Type: | 250um Bare Fiber |
| Package Type: | Steel Tube | Configuration Type: | 1×4 With FC Connectors |
| High Light: | 1×4 Fiber Optic FC Coupler,Dual Window FC Fiber Optic Coupler,FBT Fiber Coupler Single Mode |
||

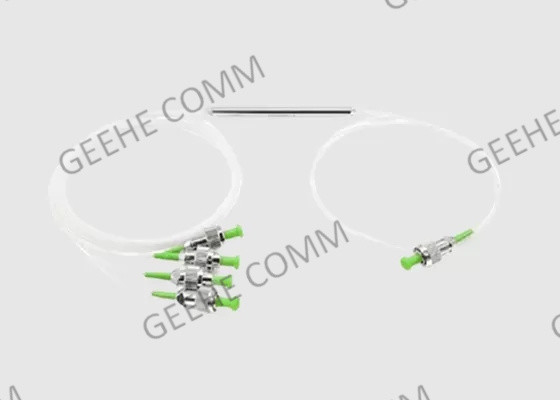

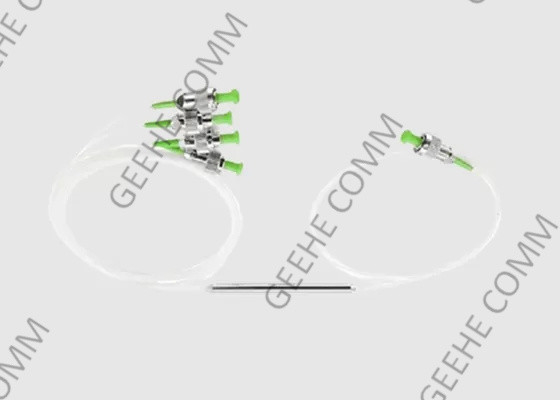

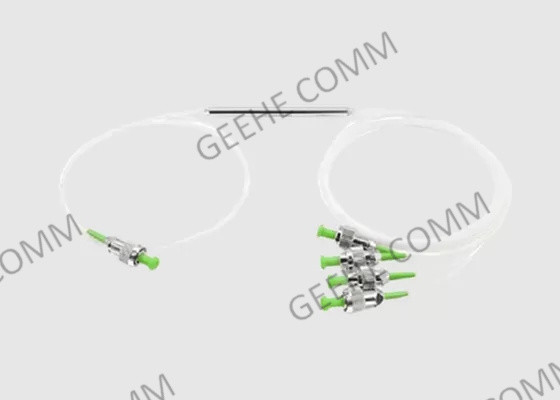

Single Mode Dual Window 1310& 1550nm 1×4 FBT Fiber Optic FC Coupler
Optic Coupler Brief Introduces:
Fiber Fused Couplers / Splitters include wideband fused fiber couplers, polarization-insensitive miniature circulators, and fused single-mode wavelength division multiplexers.
MMFC series multi-mode single-window wideband fused fiber couplers are highly stable for multiport optical signal splitting. SWFC / DWFC series fused single or dual window wideband fiber 1x2 (2x2) couplers provide accurate optical signal coupling and splitting over a wide bandwidth with high performance and high reliability.
MIOC 3- or 4-port polarization-insensitive miniature circulators feature excellent optical characteristics over a wide wavelength range. SWD fused single-mode wavelength division multiplexers are manufactured using fused biconical taper technology.
1× 4 Fiber Optic Coupler Features& Benefits:
1) SWFC / DWFC:
Fused single or dual window wideband fiber 1x2 (2x2) couplers
Provides accurate optical signal coupling and splitting over a wide bandwidth with high-performance and high-reliability
2) SWD:
Fused single-mode wavelength division multiplexers
Manufactured using fused biconical taper technology
3) MIOC:
3- or 4-port polarization-insensitive miniature circulators
Excellent optical characteristics over a wide wavelength range
4) MMFC:
Multi-mode single-window wideband fused fiber couplers
Highly stable for multiport optical signal splitting
Dual Window Wide Brand Coupler Specification and parameter:
| Parameter | P | A | |||
| Operating Wavelength(nm) | 1310&1550 | ||||
| Operating Bandwidth(nm) | 1310 ± 40nm,1550 ± 40nm | ||||
| Fiber Type(dB) | Corning G652D OR Corning G657 A1 | ||||
| Insertion Loss (dB) |
50/50 | ≤3.3 | ≤3.5 | ||
| 40/60 | 3.70~4.40≤2.5 | 3.50~4.60/≤2.8 | |||
| 30/70 | 5.00~5.60/≤1.8 | 4.90~6.10/≤2.1 | |||
| 20/80 | 6.80~7.40/≤1.2 | 6.50~7.70/≤1.2 | |||
| 10/90 | 9.60~10.50/≤0.6 | 8.80~11.40/≤0.8 | |||
| 5/95 | 12.70~13.50 /≤0.4 | 12.05~14.05/≤0.5 | |||
| 3/97 | 14.60~15.50/≤0.3 | 13.60~16.05/≤0.4 | |||
| 2/98 | 16.60~17.90/≤0.25 | 15.60~18.20/≤0.3 | |||
| 1/99 | 19.20~20.80/≤0.2 | 18.80~21.40/≤0.25 | |||
| PDL(dB) | ≤0.1 | ≤0.15 | |||
| Return Loss(dB) | ≥50 | ≥45 | |||
| Directivity(dB) | ≥55 | ||||
| Operating Temperature(℃) | -40 ~ +85 | ||||
* The above specification is without connector
* Other specifications can be made on customer request
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X |
| P: Premium A: Grade A X: Customization |
12:1x2 22:2x2 |
35:1310/1550nm | 01: 01:99 02: 02:98 …… 50: 50:50 |
1:1 m x: Customization |
25:250μM Fiber 09:900μM loose fiber | SC: SC/UPC SA: SC/APC 00: no connector |
A: A B: B C:C |
|
| Grade | Port number | Operating wavelength | Coupling ratio | Fiber length | Fiber type | Connect type | Dimension |
EX:WBC-P-12-35-50-1-09-0-B
2×2 FIber Optic Coupler Application:
FTTx Systems
LAN, WAN and Metro Networks
Analog/Digital Passive Optical Networks
Long-haul telecommunication
Mini sizes transmitter/receiver module
Optical communication system
Optical communication system
Optical power distribution system
Fiber optic sensors
Optical test system
Wuhan Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Fast Delivery
With skilled and stable workers, all the order turnover is fast than the competitors
5) Factory Audit
We cooperate with famous brands and Japanese customers, with 15 years of factory inspection experience and be familiar with the whole inspect process by SGS
