Product Details:
|
| Model Name: | Fiber Optics Connector | Connector Type: | SC/FC/LC/ST/MTRJ/MU/MPO Ect |
|---|---|---|---|
| Ferrule End-face: | PC,UPC,APC | Fiber Type: | Singlemode, Multimode |
| Color: | Blue,Green,Grey,Aqua,Purple Etc | Cable Applicable: | 3.1 X 2.0 Mm Drop Cable |
| Installation Time: | Within 60s ( No Fiber Cut ) | Sleeve: | Caremic/Phosphor Bronze |
| Highlight: | 2.0mm LC Simplex Connector,LC Simplex Connector With Aqua Boots,Multimode lc simplex connector |
||

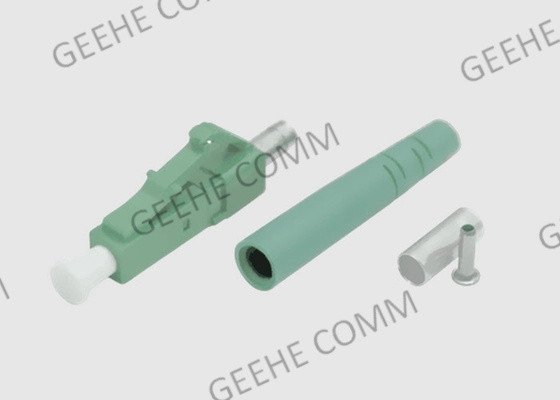

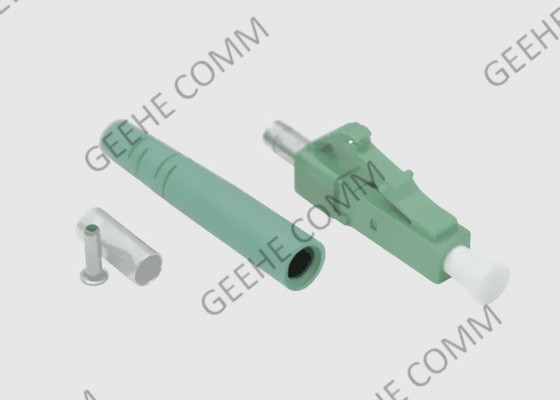

Multimode 2.0mm Simplex LC Fiber Optic Connectors With Aqua boots
Brief Introduction:
Fiber patch cords are capped at both ends with fiber optic connectors to allow them to be rapidly and conveniently connected to telecommunication equipment and to achieve accurate and precise connections. Fiber optic connector is a very important part of the fiber patch cords. This article mainly talks about what fiber optic connector is, four common types of fiber optic connectors, and its relationship with fiber patch cords.
An LC fiber optic connector terminates the end of an optical fiber and provides a separable connection between two elements of an electronic system without unacceptable signal distortion or power loss
Fiber Optic connectors Features and Advantages:
Ferrule end surface pre-domed
Boots in a variety of colors
Telcordia style boots
Clips are available for SC and LC duplex connectors
Good exchangeability and good durability
Notes for Fiber Optic Connector Installation:
Besides different installation methods for different connector types, several things need to be paid attention to when installing fiber optic connectors, especially when a fiber patch cord has two different types of connectors, such as LC-SC fiber optic patch cord or FC-ST fiber optic patch cord.
The bared fiber must be thoroughly cleaned with fiber optic cleaning fluid. Never clean the fiber with dry tissue. Before the connection is made, the end of each fiber must have a smooth finish that is free of defects such as hackles, lips, and fractures.
The cable should be cut about one inch longer than the required finished length.
Be sure to use strippers made specifically for use with fiber rather than metal wire strippers because damage can occur and then weaken the fiber.
Application of LC Connector:
LC Fiber Optic Connector Technology Specification& Parameters:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.2； MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥55 | ≥65 |
| MM | dB | ≥36(Exclusive APC Connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
Order Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex | LA:LC/APC LC:LC/UPC LP:LC/PC | LA:LC/APC LC:LC/UPC LP:LC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m | |
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
More fiber optic connector types:
Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Fast Delivery
All the order turn over is very fast and every step will feedback to customers
