Product Details:
|
| Model Name: | OM4 Fiber Optic Adapter Coupler | Mode Type: | Duplex |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing Material: | Metal, Plastic |
| Connector: | SC Male To SC Female | Fiber Counts: | Duplex |
| Color: | Blue,Steel | Durability: | >1000 Mating Times |
| Operating Temperature: | -40~75℃ | Adapter Mounting Type: | Flanges |
| Highlight: | Duplex OM4 Fiber Optic Adapter,Multimode Optical SC Adapter,OM4 sc duplex adapter |
||

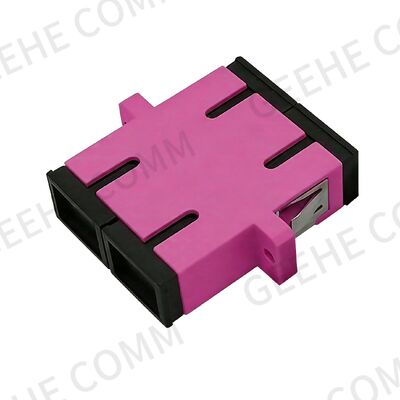

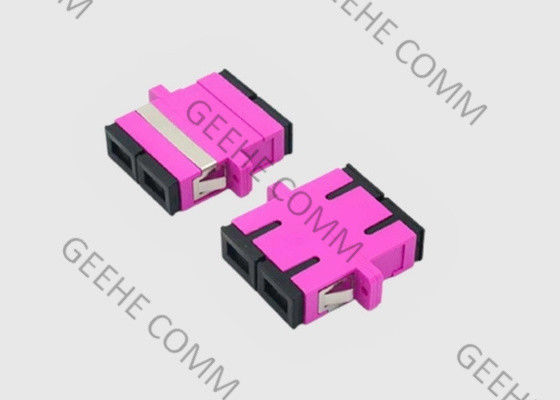

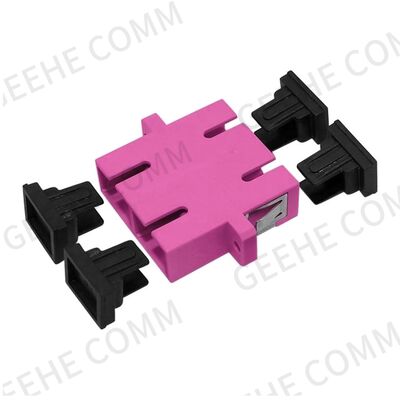

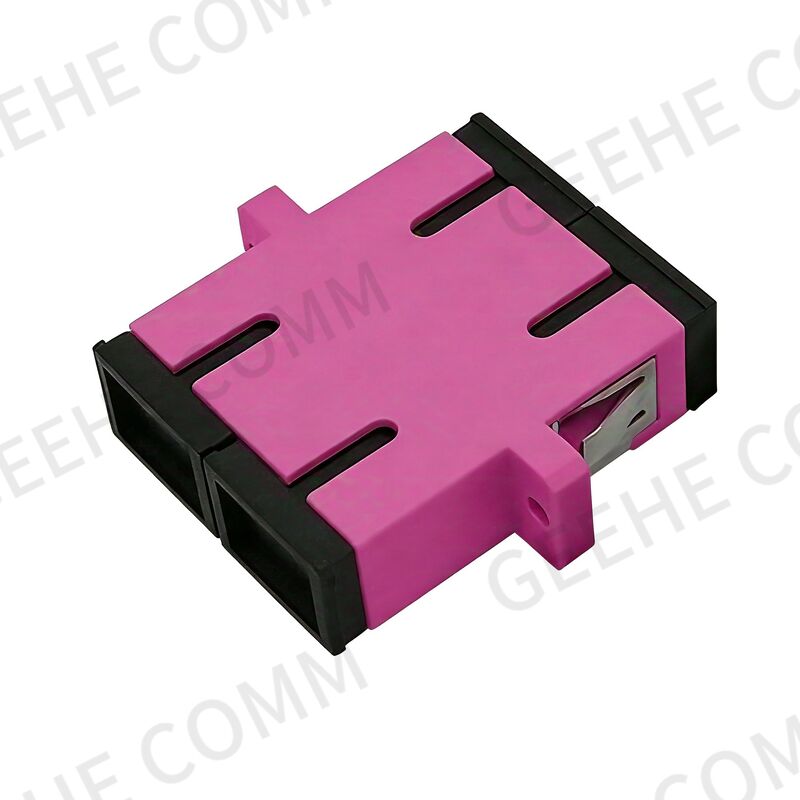

Multimode Optical SC Adapter Duplex OM4 Fiber Optic Adapter Coupler
1. Product Overview:
Fiber optics transmit information at high bandwidths and over long distances while successfully maintaining the integrity of a reliable signal. These particular couplers allow you to connect optic fibers with SC connectors together. The SC features a push-on/pull-off mechanism, making it simple and convenient for the consumer's use.
SC connectors, adapters, and cable assemblies have been developed to meet the challenges of the Datacom and Telecom industries, including compatibility with many standard cable sizes and fiber types, adhering to industry mechanical and environmental standards.
2. SC Optical Cable Adaptor Feature and Benefits:
3. LC Fiber Optic Adapter Applications:
4. Optic Adapter Specification & Technology Parameters:
| Item | Value | Unit | ||
| Sleeve Material | Ceramic | / | ||
| Insertion Loss | Male | Typ. | ≤ 0.5 | dB |
| Min. | ≤ 0.2 | dB | ||
| Female | Typ. | ≤ 0.3 | dB | |
| Min. | ≤ 0.2 | dB | ||
| Return Loss | UPC | ≥50 | dB | |
| APC | ≥60 | dB | ||
| PC | ≥35 | dB | ||
| Insertion Loss Max. | 0.2 | dB | ||
| ∆ IL | Uniformity | ＜0.2 | dB | |
| Durability (1000 times) | ＜0.3 | dB | ||
| Proof Test | 40N,10 minute | N | ||
| Insertion And Withdrawal Force | ≤19.6N | N | ||
| Operating Temperature | -25~+70 | ℃ | ||
| Storage Temperature | -25~+70 | ℃ | ||
| Protocol Standards | IEC60874-10/61300/TIA/EIA568 | |||
5. Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SC FC ST LC MU |
APC UPC PC |
Z: Zirconia ceramic P: Phosphor Bronze | W: With Flange N: No Flange |
W: With shutter N: No shutter |
|
| Fiber Mode | Connector Type | Connector Type | Sleeve | Flange Type | Shutter Type |
6.More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) 24/7 After Service
Any questions about our products welcome to feedback us, we will reply with 1 hour and give solve solutions within 2-3 hours.
