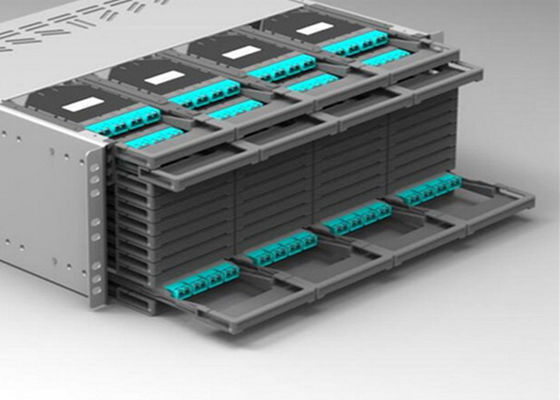

Rear Cable Management Bar MPO CSUPC Cassette OM3 Fiber Type Facilitating Organized Fiber Routing and Reduced Signal Loss

Product Description:

The HD Patch Panel is a high-performance solution designed to meet the demands of modern data centers and telecommunication networks. Weighing just 1.2 Kg, this patch panel combines durability with ease of installation, making it an ideal choice for network professionals seeking reliable and efficient connectivity management. Its robust construction ensures longevity and stable performance, even in the most demanding environments.

One of the standout features of this HD Patch Panel is its shielded design. Shielding is critical in minimizing electromagnetic interference (EMI) and crosstalk, ensuring that data transmission remains clean and uninterrupted. This makes the patch panel particularly suitable for high-speed networks where signal integrity is paramount. By incorporating advanced shielding techniques, the HD Patch Panel helps maintain optimal network performance and reduces the risk of data loss or corruption.

The termination type of this patch panel is Punch Down (110 Type), which is widely recognized for its reliability and ease of use. The 110 punch down termination allows for secure, consistent connections without the need for soldering or specialized tools. This feature significantly reduces installation time and simplifies maintenance, making it easier to manage large-scale network deployments. Technicians can confidently terminate cables with precision, ensuring minimal signal loss and a high level of connection integrity.

Color plays an important role in network organization and identification. The HD Patch Panel comes in an elegant black finish, providing a professional and clean appearance that blends seamlessly into any data center or networking rack. The black color not only enhances aesthetics but also aids in quick visual identification when managing multiple panels and cables, helping to reduce errors during installation and troubleshooting.

Cable management is a crucial aspect of any patch panel system, and the HD Patch Panel excels in this area with its integrated rear cable management bar. This feature helps organize and secure cables at the back of the panel, preventing tangling and reducing strain on the connections. Proper cable management improves airflow within racks, which is vital for maintaining optimal operating temperatures and preventing equipment overheating. Additionally, the rear cable management bar simplifies future upgrades or changes by keeping cables neat and accessible.

The HD Patch Panel is fully compatible with 144F MPO 1U Patch Panel configurations, making it a versatile choice for high-density fiber optic networks. This compatibility ensures that the panel can be seamlessly integrated into existing infrastructures, providing scalability and flexibility for network expansion. The ability to support 144-fiber configurations in a compact 1U rack space maximizes the use of valuable data center real estate while delivering high-capacity connectivity.

Furthermore, the HD Patch Panel is designed to accommodate MPO-CSUPC Cassette and MPO-CSAPC Cassette modules, offering enhanced adaptability for different fiber optic connection types. These cassettes allow for quick and easy deployment of MPO/MTP fiber connections, which are essential for high-speed data transmission in enterprise and carrier networks. By supporting both UPC and APC cassette variants, the patch panel meets diverse network requirements, whether the focus is on minimizing return loss or ensuring optimal signal reflection.

In summary, the HD Patch Panel is a comprehensive solution that combines a lightweight design with advanced shielding, reliable punch down termination, and efficient cable management. Its black finish and compatibility with 144F MPO 1U Patch Panel setups, along with support for MPO-CSUPC Cassette and MPO-CSAPC Cassette modules, make it an excellent choice for network professionals seeking to enhance the performance and organization of their fiber optic infrastructure. Whether for data centers, enterprise networks, or telecommunications applications, this patch panel offers the reliability, flexibility, and ease of use that modern networks demand.

Applications:

The HD Patch Panel, available under renowned brands such as US Connec, Senko, or customized options, is an essential component for modern data communication infrastructure. Manufactured in China, this high-density patch panel supports a maximum capacity of up to 576 cores, making it ideal for large-scale network deployments. Its compact dimension of 483 X 375 X 4HU (mm) ensures efficient use of rack space while maintaining superior performance and reliability.

Specifically designed for high-speed data center applications, the HD Patch Panel is perfectly suited for 10G, 40G, and 100G environments, providing seamless connectivity and optimal signal integrity. The 144F MPO 1U Patch Panel variant is particularly popular, combining high fiber density with a 1U rack height, allowing network administrators to maximize port density without sacrificing manageability. This makes it an excellent choice for data centers aiming to upgrade or expand their fiber optic infrastructure.

The HD Patch Panel integrates MPO-CSUPC cassettes, which support MPO adapters and LC adapters, ensuring compatibility with various fiber optic cables and transceivers. The MPO cassettes facilitate easy and efficient fiber termination, while the LC adapters allow flexible connectivity options, supporting both single-mode and multimode fiber systems. This versatility makes the product suitable for diverse networking scenarios, from enterprise data centers to telecommunications rooms and campus networks.

Application occasions for the HD Patch Panel include high-capacity data centers where space optimization and high bandwidth are critical. It is also ideal for carrier networks and large campus environments requiring robust fiber management solutions. The 144F MPO 1U Patch Panel, combined with MPO-CSUPC cassettes, enables quick installation and maintenance, reducing downtime and improving operational efficiency. Whether building a new data center or upgrading an existing one, this patch panel is designed to meet the demands of next-generation network infrastructures.

Overall, the HD Patch Panel from US Connec, Senko, or customized brands stands out for its high capacity, compact design, and adaptability. Its support for MPO and LC adapters, along with the inclusion of MPO-CSUPC cassettes, makes it a versatile and reliable choice for 10G, 40G, and 100G data center applications. The 144F MPO 1U Patch Panel ensures that organizations can deploy high-density fiber solutions with ease, enhancing network performance and scalability.

Customization:

Our HD Patch Panel product offers extensive customization services to meet your networking needs. Available under the trusted brand names US Connec, Senko, or fully customized options, these patch panels are manufactured in China with high-quality standards. The 96F MPO 1U Patch Panel and 144F MPO 1U Patch Panel configurations provide versatile solutions for high-density fiber management.

The panels come in a sleek black color and feature MPO-CSUPC Cassettes, ensuring excellent performance and compatibility. Designed to operate reliably within a temperature range of -40°C to 80°C, these patch panels are built to withstand various environmental conditions. Weighing 1.2 Kg, each unit is lightweight yet robust for easy installation and durability.

Equipped with RJ45 port types, our HD Patch Panels facilitate efficient network connections while supporting MPO cassette integration. Whether you require the 96F MPO 1U Patch Panel or the 144F MPO 1U Patch Panel, our customization services guarantee a tailored solution to fit your specific application requirements.

Support and Services:

Our HD Patch Panel is designed to provide high-density connectivity and superior performance for your network infrastructure. To ensure optimal operation and ease of installation, please follow the guidelines below.

Installation Support: The HD Patch Panel is compatible with standard 19-inch racks and requires appropriate cable management for maintaining signal integrity. Use the provided mounting brackets and ensure all connections are secure. Refer to the installation manual for detailed steps.

Troubleshooting: If you experience connectivity issues, verify that all cables are properly seated and that there is no physical damage to the panel or cables. Utilize testing equipment to check for continuity and signal loss. Replace any faulty cables or connectors as needed.

Maintenance: Regularly inspect the patch panel for dust and debris, and clean with a dry, lint-free cloth. Avoid using liquids or abrasive materials. Ensure that all connections remain tight to prevent signal degradation.

Warranty and Repairs: The HD Patch Panel comes with a limited warranty covering manufacturing defects. For repair or replacement services, please refer to the warranty terms. Unauthorized modifications or misuse may void the warranty.

For additional technical assistance, please consult the product manual or visit our online support resources.

Packing and Shipping:

Product Packaging: The HD Patch Panel is carefully packaged using high-quality materials to ensure maximum protection during transit. Each unit is securely placed in a custom-fit foam insert within a sturdy cardboard box, preventing any movement or damage. The packaging also includes anti-static bags to protect sensitive electronic components from electrostatic discharge. Clear labeling and handling instructions are printed on the box to facilitate safe and efficient handling.

Shipping: The HD Patch Panel is shipped via reliable carriers with tracking options to ensure timely and secure delivery. We offer multiple shipping methods including standard, expedited, and express services to accommodate different customer needs. All shipments are insured and carefully inspected before dispatch to guarantee that the product reaches you in perfect condition. International shipping is available with appropriate customs documentation provided.

FAQ:

Q: What brands are available for the HD Patch Panel?

A: The HD Patch Panel is available under the brands US Connec, Senko, or can be customized according to your requirements.

Q: Where is the HD Patch Panel manufactured?

A: The HD Patch Panel is manufactured in China, ensuring high-quality standards and reliable performance.

Q: Can the HD Patch Panel be customized?

A: Yes, the HD Patch Panel can be customized to meet specific needs, including brand labeling, size, and port configurations.

Q: What types of connections does the HD Patch Panel support?

A: The HD Patch Panel supports various high-density connections suitable for data centers, telecommunications, and network infrastructure setups.

Q: Is the HD Patch Panel compatible with standard network cables?

A: Yes, the HD Patch Panel is designed to be compatible with standard network cables, making it easy to integrate into existing network systems.
