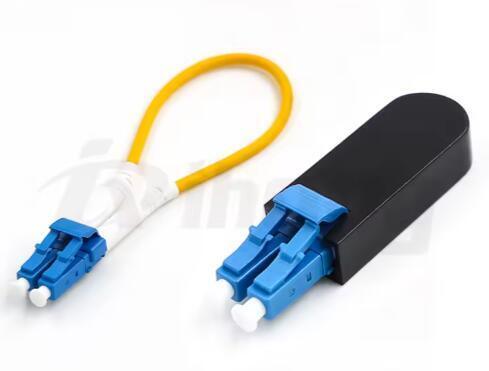

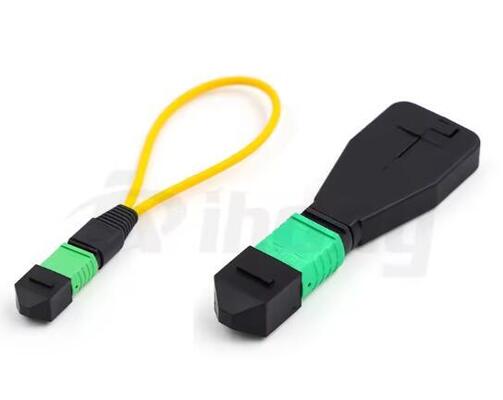

MPO/SC/LC Loopback quick connect fiber optic connectors few dollars solve big troubles by a plug with two connectors

Large Image : MPO/SC/LC Loopback quick connect fiber optic connectors few dollars solve big troubles by a plug with two connectors

Product Details:

Place of Origin:	China or Malaysia
Brand Name:	US Connec, Senko or Customized
Certification:	ISO9001，RoHS, UL, REACH
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Packaging Details:	RoHS complaint polybag & carton box
Delivery Time:	5-8 working days
Payment Terms:	T/T, Western Union
Supply Ability:	Monthly 1000pcs MPO termination

Contact Now

MPO/SC/LC Loopback quick connect fiber optic connectors few dollars solve big troubles by a plug with two connectors

Description

Application:	FTTH FTTB FTTX Network,CATV,Telecommunication	Insertion Loss:	IL<0.2db
Return Loss:	> 55db	Connector Type:	LC/SC/MPO Etc.,ODC Male/Female
Type:	PC/UPC/APC	Fiber Type:	SM Or MM,G657A1,G652D
Operating Temperature:	-40 To +85 Degree	Durability:	1000 Times
Lead Time:	3-7working Days	Warranty:	2 Years
Insert Loss:	0.2dB	Name:	FTTH Fast Connector

MPO/SC/LC Loopback quick connect fiber optic connectors few dollars solve big troubles by a plug with two connectors

https://youtube.com/shorts/pqexcbpfMgU?si=09w97TSl8mEAWFh1

Geehe China's MPO/SC/LC Loopback Modules are high-precision passive optical components designed for testing, debugging, and verifying the performance of fiber optic networks. Engineered with premium materials and strict quality control, they provide reliable signal reflection for network maintenance, production testing, and lab validation, ideal for data centers, telecom networks, and enterprise IT infrastructures.

General Parameters

Connector Types: MPO (12/24 fibers, male/female), SC (PC/APC, single-mode/multi-mode), LC (PC/APC, single-mode/multi-mode)
Fiber Type: Single-mode (SMF-28e+/G.652D/G.657A1/A2), Multi-mode (OM3/OM4/OM5)
Operating Wavelength: 850nm, 1310nm, 1550nm (compatible with wideband applications)
Return Loss (RL): SM: ≥50dB (PC), ≥60dB (APC); MM: ≥45dB (PC)
Insertion Loss (IL): ≤0.2dB (typical), ≤0.3dB (maximum)
Durability: ≥1000 mating cycles, stable performance after repeated connections
Operating Temperature: -40°C to +85°C (-40°F to +185°F), suitable for harsh environments
Housing Material: High-grade plastic (ABS) or metal, lightweight and corrosion-resistant
Polarity: MPO: Type A/B/C (customizable); SC/LC: Standard polarity (UPC/APC)

Key Features

High Precision: Low insertion loss and high return loss ensure accurate test results, avoiding signal distortion.
Versatility: Supports single-mode/multi-mode, various connector types, and wavelength ranges for diverse network setups.
Robust Design: Industrial-grade housing and premium fiber cores enhance durability and long-term reliability.
Customizable: Connector polarity, fiber count (MPO), and housing color available for OEM/ODM orders.
Plug-and-Play: Easy to install and use, no additional tools required for testing operations.

Application Scenarios

Data Center Testing: Validate performance of MPO/SC/LC fiber links, transceivers (SFP/SFP+/QSFP), and patch panels in high-density data centers. Ideal for 10G/25G/40G/100G/400G network testing.
Telecom Network Maintenance: Troubleshoot fiber optic lines, test OLT/ONU equipment, and verify signal integrity in FTTH (Fiber-to-the-Home) and 5G backhaul networks.
Lab & Production Validation: Used in R&D labs and manufacturing facilities to test the quality of fiber optic components, ensure compliance with industry standards (Telcordia/G.65x), and optimize production processes.
Enterprise Network Debugging: Maintain and test internal fiber networks in enterprises, campuses, and industrial parks, ensuring stable connectivity for critical business operations.
Quality Control (QC) Inspections: Perform incoming/outgoing inspections of fiber optic devices, ensuring consistent performance and reducing faulty products in the supply chain.

Compliance & Certification

All products comply with Telcordia GR-326, IEC 61754, and ANSI/TIA standards, and are certified by ISO 9001, RoHS, and REACH. We are a trusted supplier to leading North American data center and telecom clients, guaranteeing reliable quality and on-time delivery.
