Product Details:
|
| Model Name: | Fiber Optic Loopback Adapter | Fiber Connector: | MPO |
|---|---|---|---|
| Fiber Type: | SM:G652D/G6571A1 MM：OM1/OM2/OM2/OM4 | Housing Material: | Plastic |
| Material: | PVC & LSZH | Boot Color: | MM(Beige),OM3(Aqua),OM4(Purple),SM(Green),SM Elite(Yellow) |
| Max Attenuator: | 3.50dB/km@ 850nm, 1.25dB/km@1300nm | Operating Temperature: | - 20℃ To +70 ℃ |
| Highlight: | MPO Fiber Optic Loopback Adapter,Single Mode Fiber Optic Loopback Adapter,12 Core MPO Loopback Adapter |
||
12-Core MPO Connector Single Mode MPO Fiber Optic Loopback Adapter
1. Product Overview:

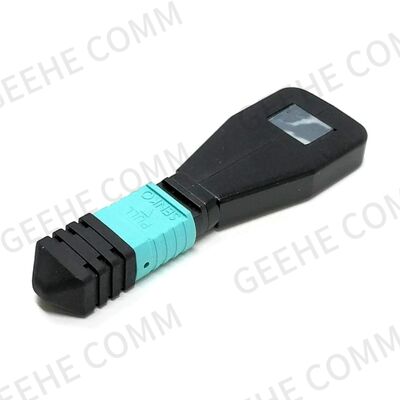

12F MTP/MPO OM3 Fiber Optic Loopback Tester is typically used for test and measurement procedures in networking environments. The device is ideal for a multitude of applications that require signal looping in an MTP/MPO form factor. Features a push-pull tab for easy disconnect. A dust cap is included for protection during storage.
2. Optical Cable Loopback Feature and Benefits:
3. Fiber Optic Backloop Adapter Applications:
4. Certification And Compliance
1) TIA/EIA-568-C.3 and ISO/IEC 11801
2)IEC-61754-7 & EIA/TIA-604-5
3)Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC
5.Optic Adapter Specification & Technology Parameters:
| Parameter | Value |
| Performance Specifications (MM) | |
| Fiber Type | Multimode OM1, OM2, OM2, OM4 |
| Max. Attenuation | 3.50dB/km@ 850nm, 1.25dB/km@1300nm |
| Insertion Loss | < 1.0dB |
| Return Loss | < -25dB |
| Operating Temperature | - 20℃ to +70 ℃ |
| Performance Specifications (SM) | |
| Fiber Type | Single Mode 9/125 um G.652D Fiber |
| Max. Attenuation | 0.4dB/km@1310nm,0.3dB/km@1550nm |
| Insertion Loss | < 1.0dB |
| Return Loss | < -60dB |
| Operating Temperature | - 20℃ to +70 ℃ |
6. Ordering Information:
| Fiber Type | Connector Type | Polish | Fiber Count | ||||
| 1 | Single Mode OS2 | LC | LC | A | APC | 2 | 2 Fibers |
| 2 | 62.5/125um Multimode OM1 | SC | SC | B | UPC | 12 | 12 Fibers |
| 3 | 50/125um Multimode OM2 | MT | MTRJ Female | C | PC | 24 | 24 Fibers |
| 4 | 50/125um Multimode OM3 | MB | MTRJ Male | ||||
| 5 | 50/125um Multimode OM4 | MP* | 12F MPO Female | ||||
| MA* | 12F MPO Male | ||||||
| PP* | 24F MPO Female | ||||||
| PA* | 24F MPO Male | ||||||
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) 24/7 After Service
Any questions about our products welcome to feedback us, we will reply with 1 hour and give solve solutions within 2-3 hours.
5) Young Team
Young age sell teams with high energy to service every customer, supply VIP service to every customer.
